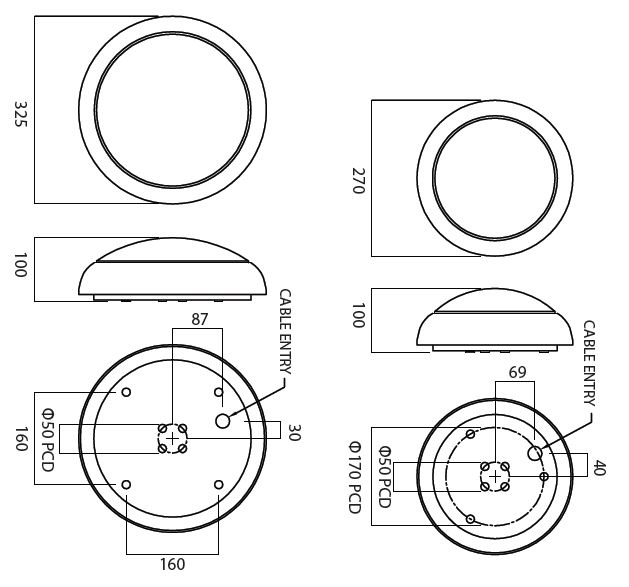

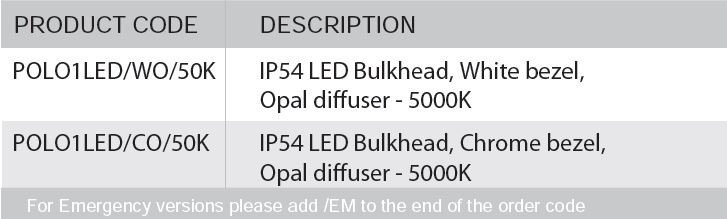

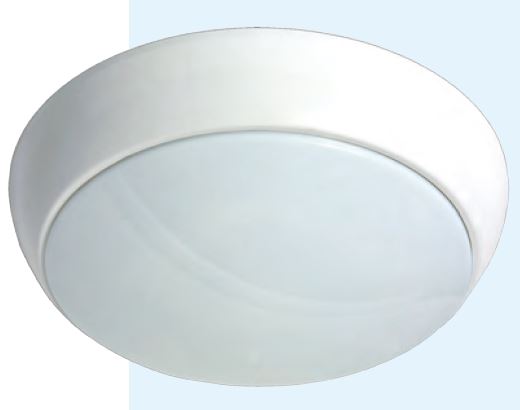

IP54 Circular LED fittings for surface mounting.
Polo LED
Applications
– Corridors
– Foyers
– General circulation areas
Construction
– Polycarbonate base
– Polycarbonate di user
– Steel gear tray
Specification
– LED gear tray – 15.5W power consumption
– 5000K.
– 1030 lumens
– White or chrome bezel
– Opal or prismatic di user
Options
– Emergency (maintained 3hr) LED geartray available
– 3500k LED gear tray available
– Gear tray with microwave sensor
– Available with corridor function

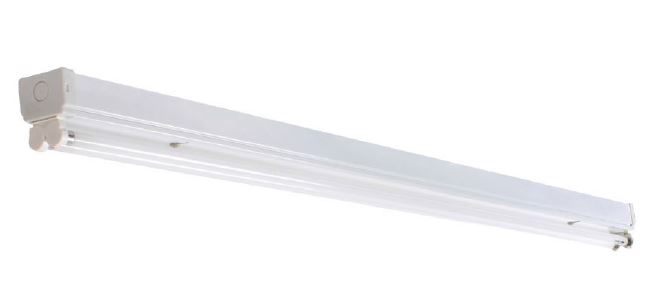

T5 batten fittings with high-frequency (HF) control gear.
Excel T5
Applications
– Garages & Workshops
– Warehouses
– Storerooms
– Corridors & Circulation areas
Specification
– For T5 lamps. Supplies excluding lamps
– Supplied with HF control gear
Construction
– Robust Steel Body
– White gloss powder coated finish
– Polycarbonate end-caps
Options
– Full range of attachments available
– Emergency versions available
– Dimming versions available

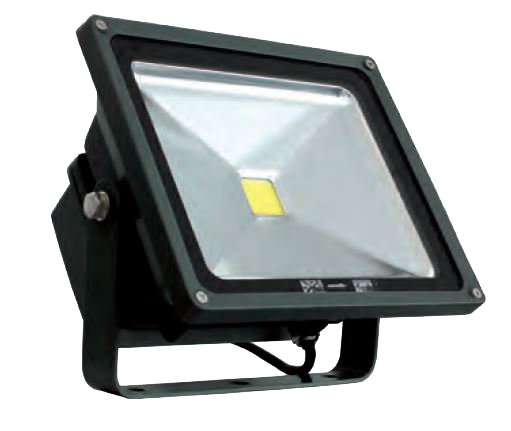

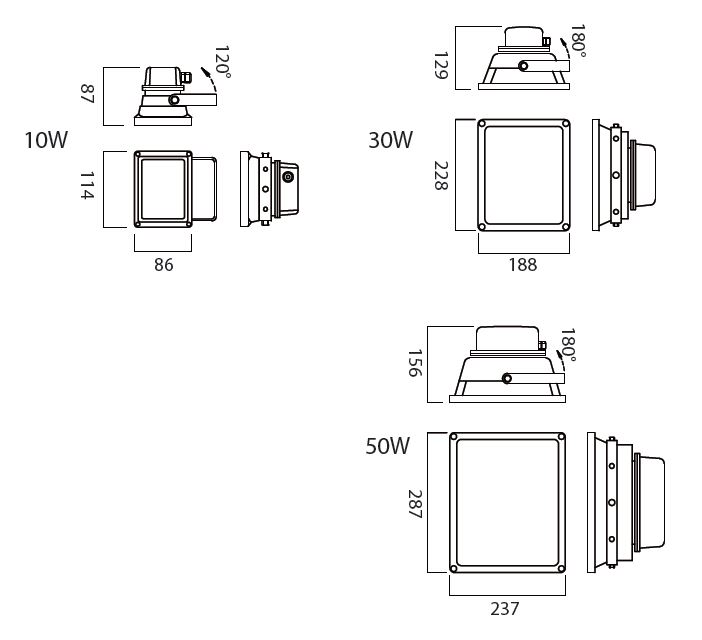

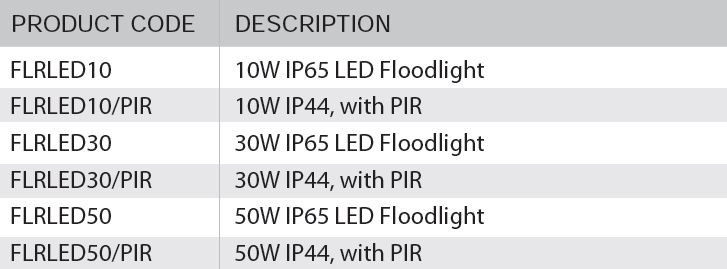

Aluminium 10W, 30W and 50W LED floodlights.
Lumino LED
Applications
– Building facades
– Signage
– General purpose floodlighting
Options
– Other colours available to order
Specification
– Colour temperature 5500K
– Symmetric light distribution
– Integral driver
– Black finish
– Working temperature -40C ~ 40C
Constuction
– Aluminium extruded body
– Toughened glass cover fully sealed and tamper proof
– Pre-wired with 1m of 3×1.5mm h07 flex
– Weight = 10W – 0.51Kg / 30W – 2.5Kg / 50W – 4.6Kg
– Windage: 10W – 0.01m2, 30W – 0.04m2, 50W -0.07m2
– With PIR – 10W, 30W and 50W

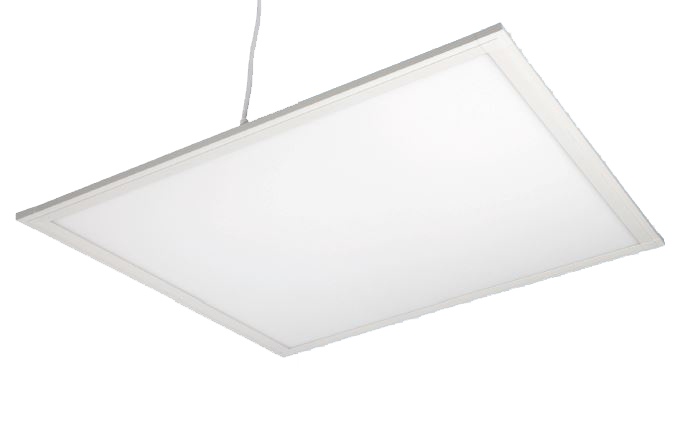

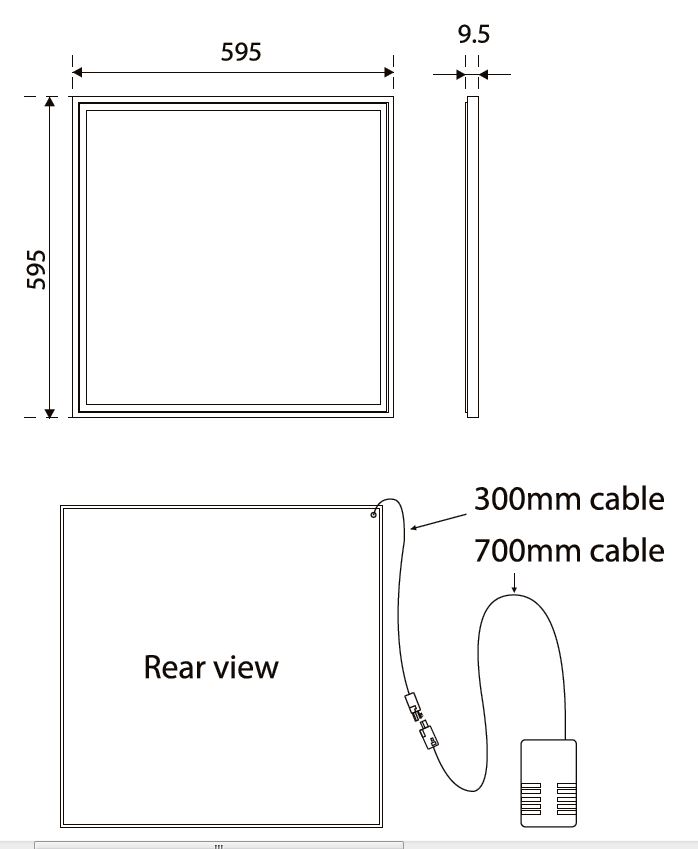

Recessed or suspended 600×600 LED Panels
Tiana V2
Applications
– Offices
– Retail
– Reception areas
Specification
– 600x600mm
– Power 35W
– Osram Driver
– Colour temp: 5,000K
– CRI>.8 Lumens 2843
– 82 I.Im/x.W- Driver forward current: 700mA- Can be suspended
Constuction
– Extruded aluminium frame, powder coated white
– Aluminium black cover
– PMMA Diffuser
