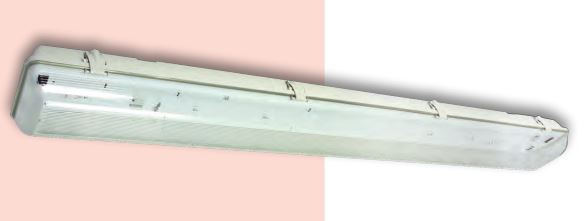

IP65 Surface mounted non-corrosive fluorescent fittings for T8 lamps
TIGER T8
Applications
– Industrial areas
– Garages and workshops
Construction
– ABS base
– Polycarbonate controller and clips
– Steel gear tray retained on straps for ease of installation
-Supplied complete with suspension eyes and stainless steel mounting brackets
Specification
– For T8 lamps. Supplied excluding lamps
– HF control gear
– IP65 rated
Options
– Integral emergency (maintained 3 hours) versions available on all versions except T8 1x18W
– Dimming versions available.Ask for details
– Stainlees steel and spare polycarbonate clips available to order
– LED version available
-Sensor option available
IP65 Surface mounted non-corrosive fluorescent fittings for T5 lamps
TIGER T5
Applications
– Industrial areas
– Garages and workshops
Construction
– ABS base
– Polycarbonate controller and clips
– Steel gear tray retained on straps for ease of installation
-Supplied complete with suspension eyes and stainless steel mounting brackets
Specification
– For T5 lamps. Supplied excluding lamps
– HF control gear
– IP65 rated
Options
– Integral emergency (maintained 3 hours) versions available on all versions except T5 14W
– Dimming versions available.Ask for details
– Stainlees steel and spare polycarbonate clips available to order
– Sensor option available – ask for details

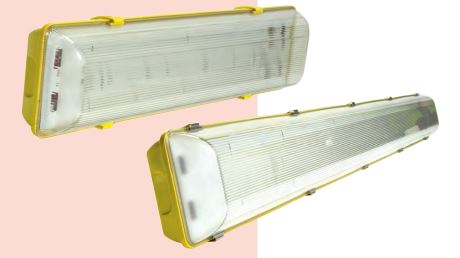

110V IP65 Surface mounted non-corrosive fluorescent fittings for T8 lamps
TIGER 110V T8
Applications
– Industrial areas
– Garages and workshops
Construction
-Yellow ABS base
– Polycarbonate controller and clips
– Steel gear tray retained on straps for ease of installation
-Supplied complete with suspension eyes and stainless steel mounting brackets
Specification
– For T8 lamps. Supplied excluding lamps
– Magnetic gear
-Yellow body
– IP65 rated
Options
– Integral emergency (maintained 3 hours) versions available on all versions except T8 1x18W
– Dimming versions available.Ask for details
– HF versions available to order

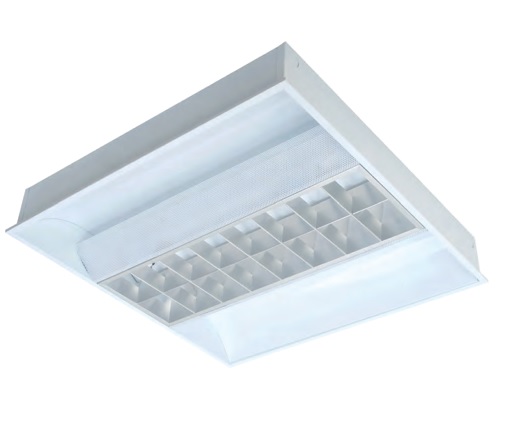

Recessed modular tting for PLL and T5 lamps, direct/ indirect, with louvre
Jaytee
Applications
– O ces and conference rooms
– Reception areas
Construction
– Robust steel body
– White gloss powder coated nish
– Double parabolic between perforated steel sections
– Hinged louvre
Specification
– HF control gear
– For PLL and T5 lamps. Supplied excluding lamps
– For 15-24mm exposed T ceilings and some pull-up installations
– Semi-specular double parabolic louvre
Options
– Emergency (maintained 3 hours) versions available
– Dimming versions available. Ask for details
– Specular double parabolic louvre
– Empty bodies of selected products available

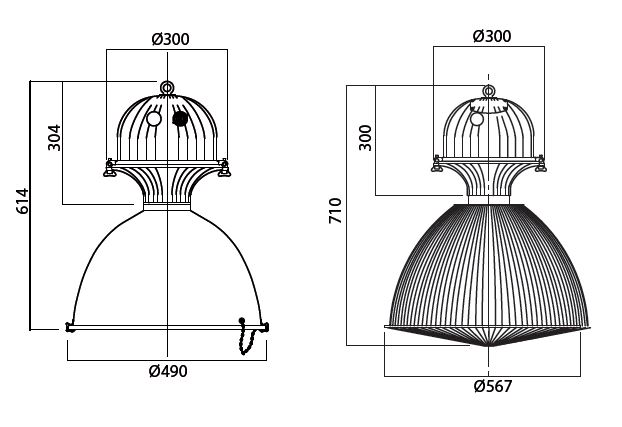

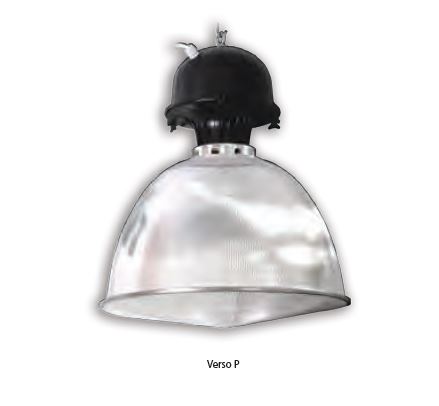

IP65 high-bay lighting for industrial and warehouse applications.
Verso
Applications
– Industrial production areas
– Warehouses
Construction
– Die-cast aluminium body
– Black powder coat nish
Specification
– Available in 250W & 400W SON or Metal Halide
– Supplied with the following, which are also available as spares:
– Toughened glass cover
– Spun aluminium re ector or
– Polycarbonate refractor with cover
– Supplied excluding lamps
Features
– Re ector retained on key-hole slots for quick mounting
– Glass cover supplied with seal, clips and chain
IP65 high-bay lighting for industrial and warehouse applications.
Verso
Applications
– Industrial production areas
– Warehouses
Construction
– Die-cast aluminium body
– Black powder coat nish
Specification
– Available in 250W & 400W SON or Metal Halide
– Supplied with the following, which are also available as spares:
– Toughened glass cover
– Spun aluminium re ector or
– Polycarbonate refractor with cover
– Supplied excluding lamps
Features
– Re ector retained on key-hole slots for quick mounting
– Glass cover supplied with seal, clips and chain
IP65 high-bay lighting for industrial and warehouse applications.
Verso
Applications
– Industrial production areas
– Warehouses
Construction
– Die-cast aluminium body
– Black powder coat nish
Specification
– Available in 250W & 400W SON or Metal Halide
– Supplied with the following, which are also available as spares:
– Toughened glass cover
– Spun aluminium re ector or
– Polycarbonate refractor with cover
– Supplied excluding lamps
Features
– Re ector retained on key-hole slots for quick mounting
– Glass cover supplied with seal, clips and chain
